engineering jigs and fixtures

Precision Jigs & Fixtures

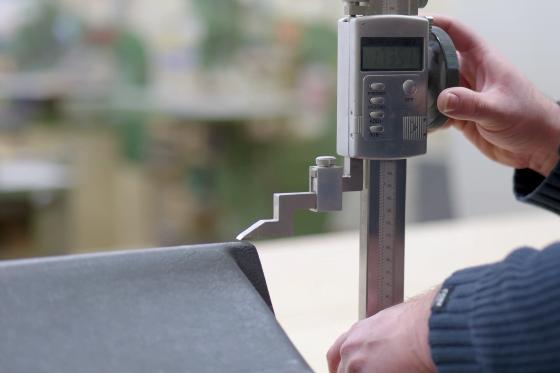

Over 30 years Meadow has perfected our processes for the manufacture of precision jigs, fixtures and checking gauges.
Precision Jigs and Fixtures

Robotic Nests

Our innovative method for creating A faced cast rubber nests makes sure products remain damage free during the manufacturing process.
Robotic Nests

Display Fabrications

With our state-of-the-art facilities and extensive display experience Meadow manage the entire fabrication process from initial concept design through to final assembly.
Display Fabrications

Design & Prototyping

We can assist with technical designs and material selection to help deliver a successful concept.
Design & Prototyping

Plastic Mould & Vacuum Form Tooling

Meadow has the capability to meet your mould tooling needs from low-run prototypes through to high-volume, water-cooled aluminium production tooling.
Vacuum Form Tooling

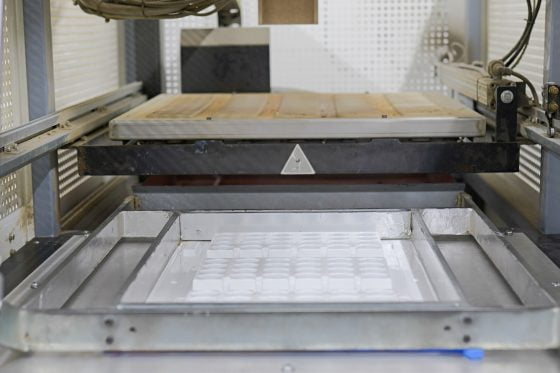

Vacuum Forming

Along with our extensive tool-making facility, we have the ability to vacuum form and trim your prototype and production tools to your exact specification.
Vacuum Forming

Vacuum Forming Tool Specialists

Welcome to Meadow Engineering Patterns. We are specialist manufacturers of vacuum forming tools, models and specialist fixtures. With our many years and broad experience, we have developed a strong reputation for quality results, with rapid and competitive project solutions.

Watch Our Video

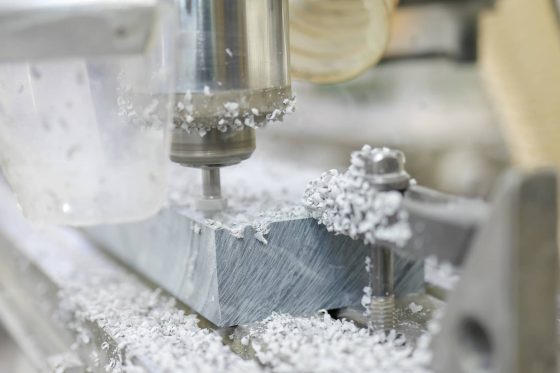

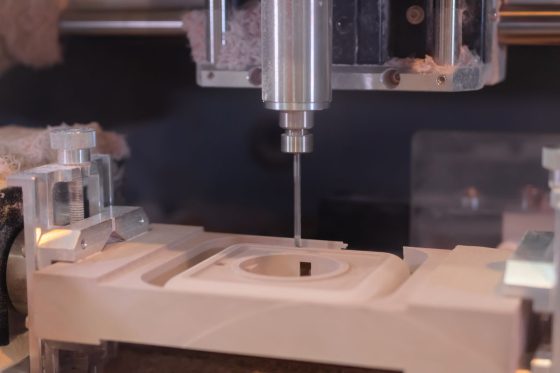

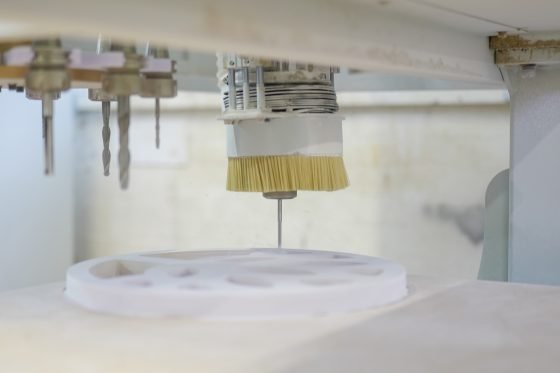

CNC Technologies

Latest CNC Technologies

We are able to provide a skilled conventional pattern-making service combined with modern CNC technology. Our professional approach and thorough practical understanding provides the best solution for your needs. We work closely with customers in areas such as retail, point of sale, automotive and engineering industries.

Vacuum Form Tooling

Case Study

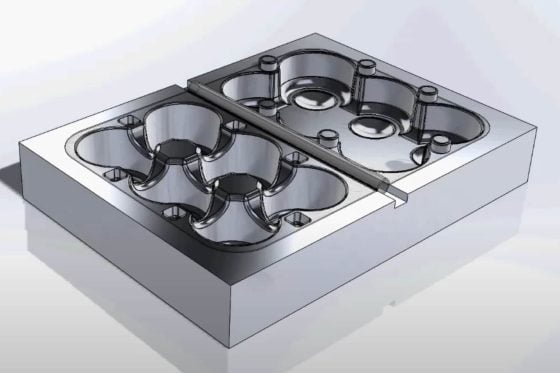

The brief asked for a cost-effective, small takeaway container to house 6 model paint pots at the point of purchase.

We developed a two-part clam-shell pack with friction fit features to achieve a semi-permanent locking feature. We called this project ‘the eggbox’.

Click on the image to view the video that details the detailed design process and gives a small glimpse of what we can achieve when working with our internal design team.

Got a Project to Discuss? Talk to a Meadow Engineer today.
